＜ 2025/9/25 Updare＞
OBS functionality has been further upgraded!
After installing the plugin, you can complete all livestreaming related settings directly within OBS, freely customize events, and now enjoy newly added support for Group Call features! This streamlines your pre-livestream preparation and fully optimizes your streaming experience!
＜ 2025/7/2 Update＞
OBS Feature Upgrade!
Install the extension to view user comments in real time directly on OBS! Stay on top of audience interactions, simplify your pre-stream setup, and enjoy a more efficient, seamless streaming experience!
▼ How to Stream with OBS
● Head to 17.live → Log in to your account → Click “Go Live” on the top to Stream with OBS.
Steps

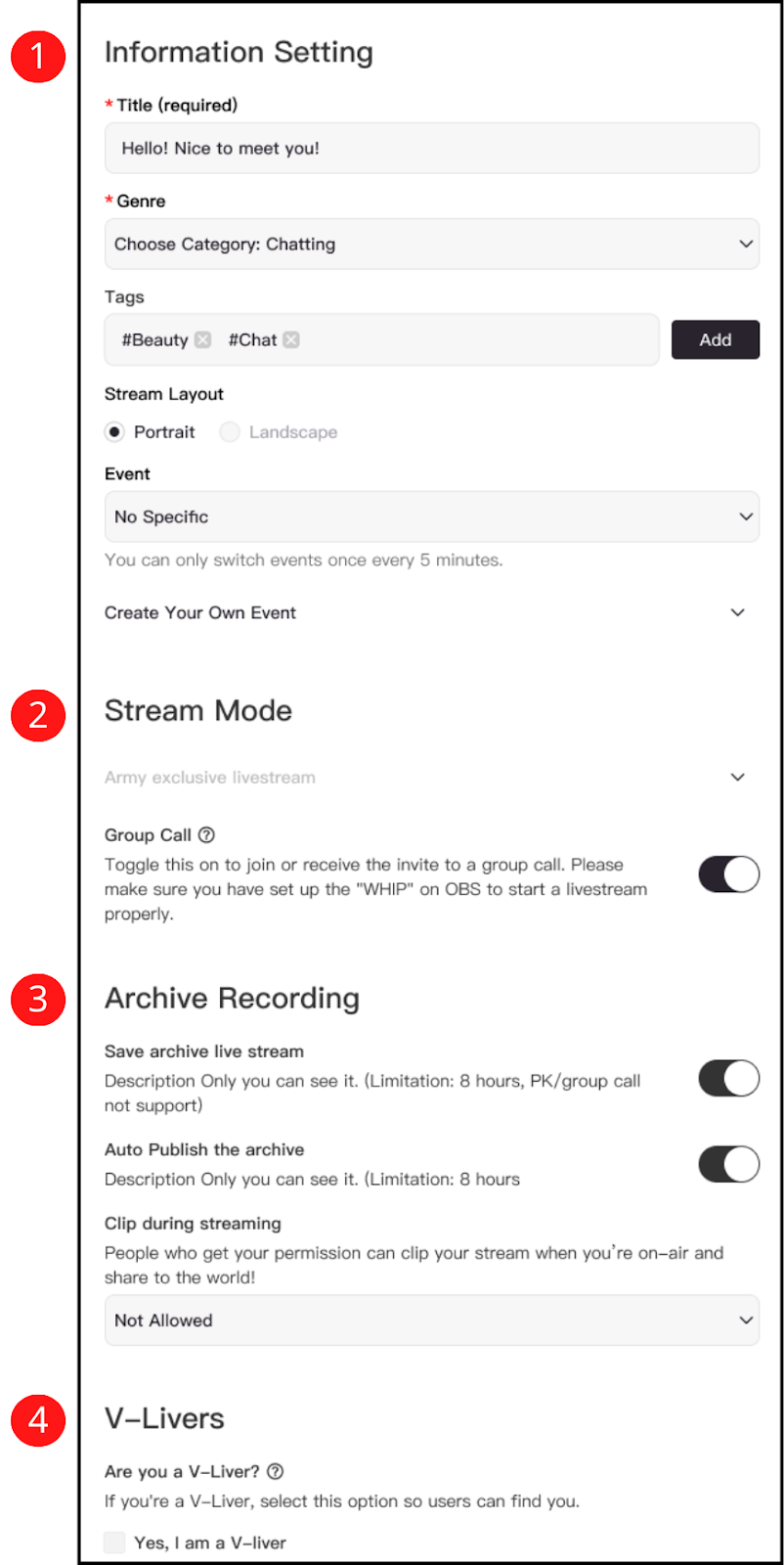

① Set up your stream
② Toggle on/off Group Call
③ Toggle Archive Recording / Stream Clips
④ Toggle the promotion for V-LIVERs

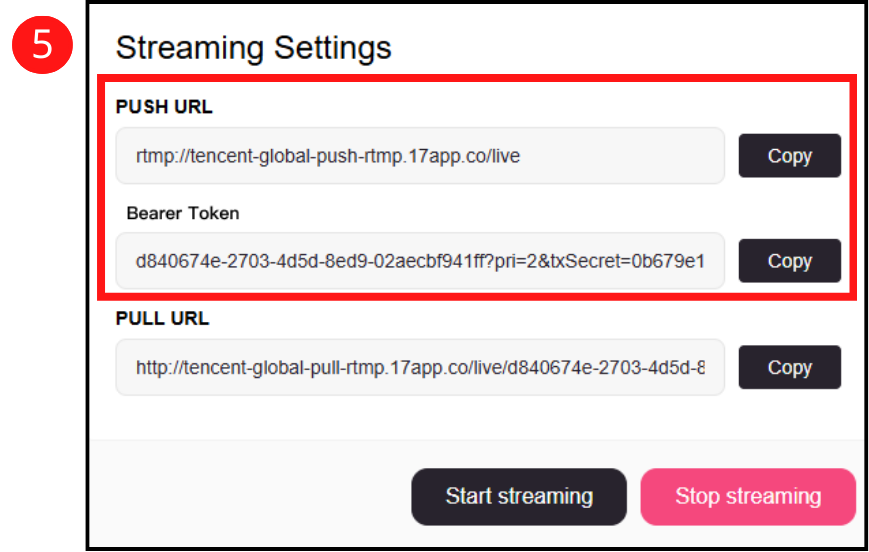

⑤ After you click “Create streaming,” the streaming information will be generated.
※ When you toggle on “Group Call,” the key will come with the URL and the Bearer Token.
⑥ You can go to the Settings on OBS Studio → Put in the information under the ⑤ “Stream” tab.
■ Settings

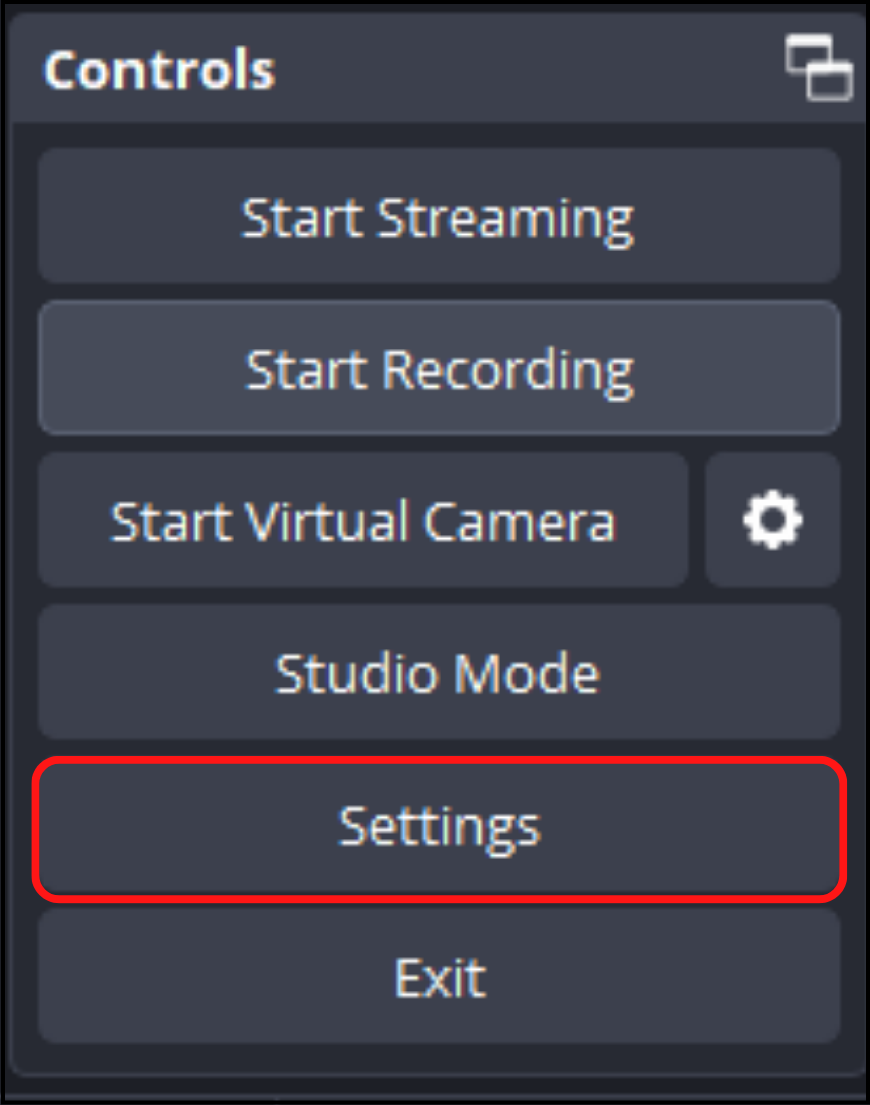

⒈ Select “Settings”

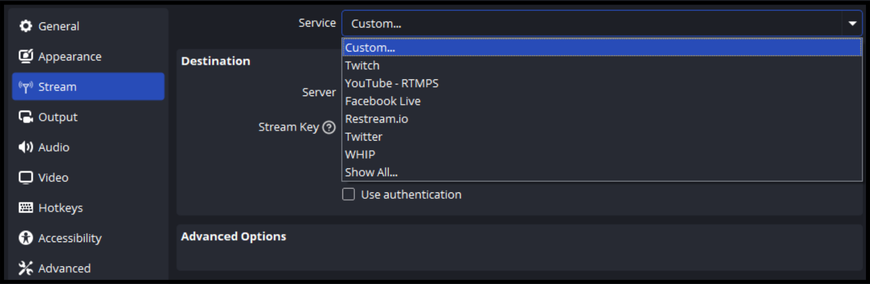

⒉ Service: Select “Custom”
※ If you have toggled on Group Call, please select “WHIP” for the service.

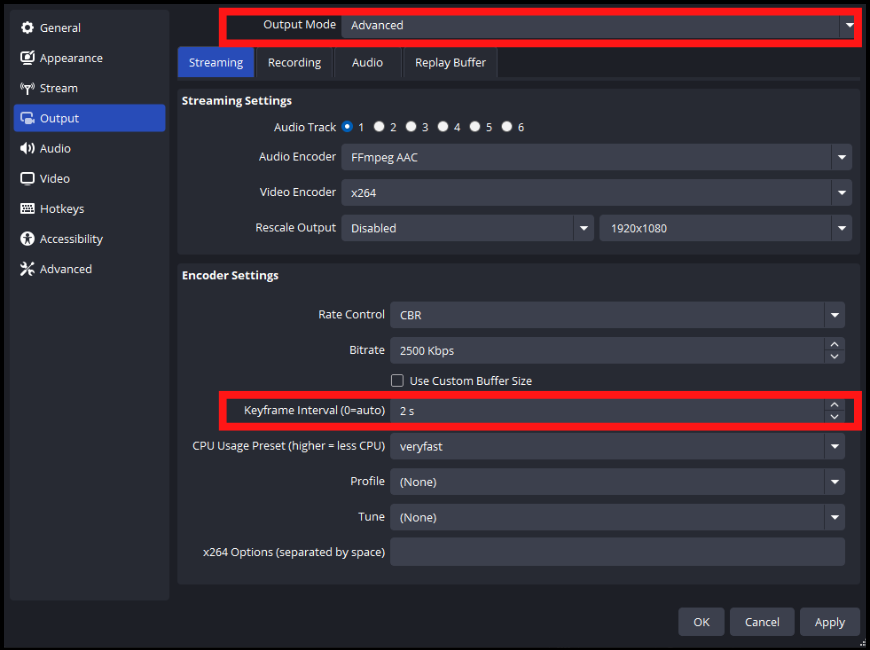

⒊ If you’d like to toggle on Group Call, select “Advanced” for the Output Mode and adjust “Keyframe Interval (0=auto) to be 2s

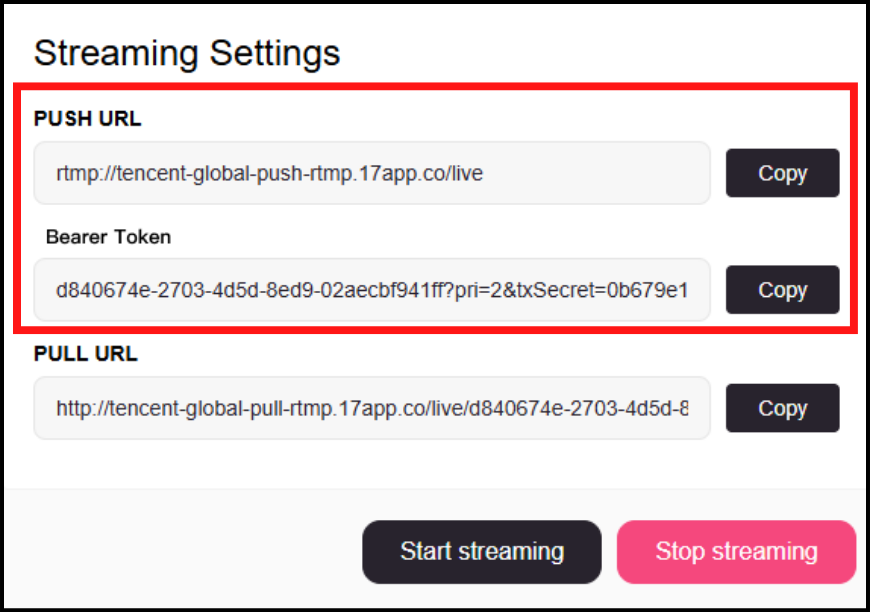

⒋ Server: Put in the ⑤ “PUSH URL” from the streaming information.
※ Please paste the information regarding the sever if you are starting a group call.
⒌ Stream Key: Put in the ⑤ stream key from the streaming information.
※ Please paste the information regarding the Bearer Token if you are starting a group call.

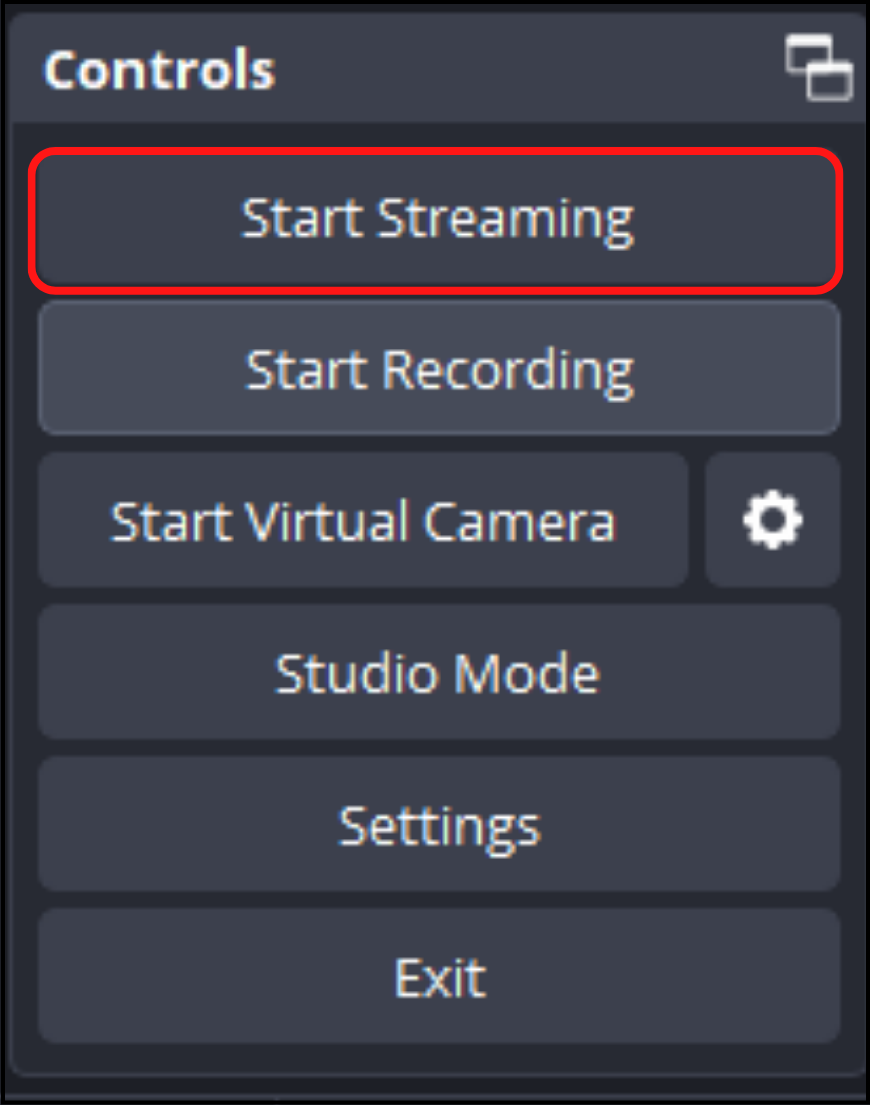

⒍ Select “Start Streaming” on the bottom right on OBS Studio.

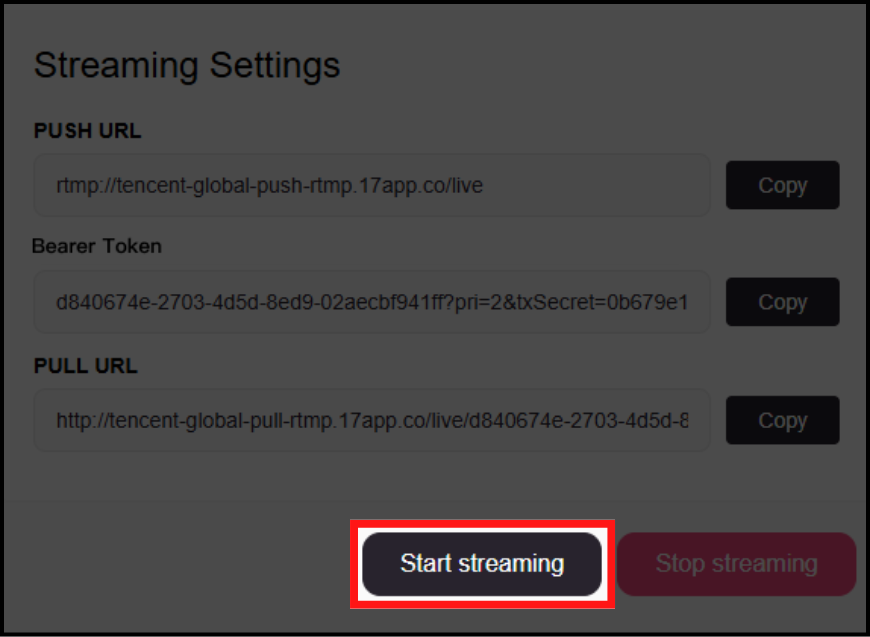

⒎ Head back to 17.live and hit “Start streaming.”
▼ How to Close a Stream on OBS

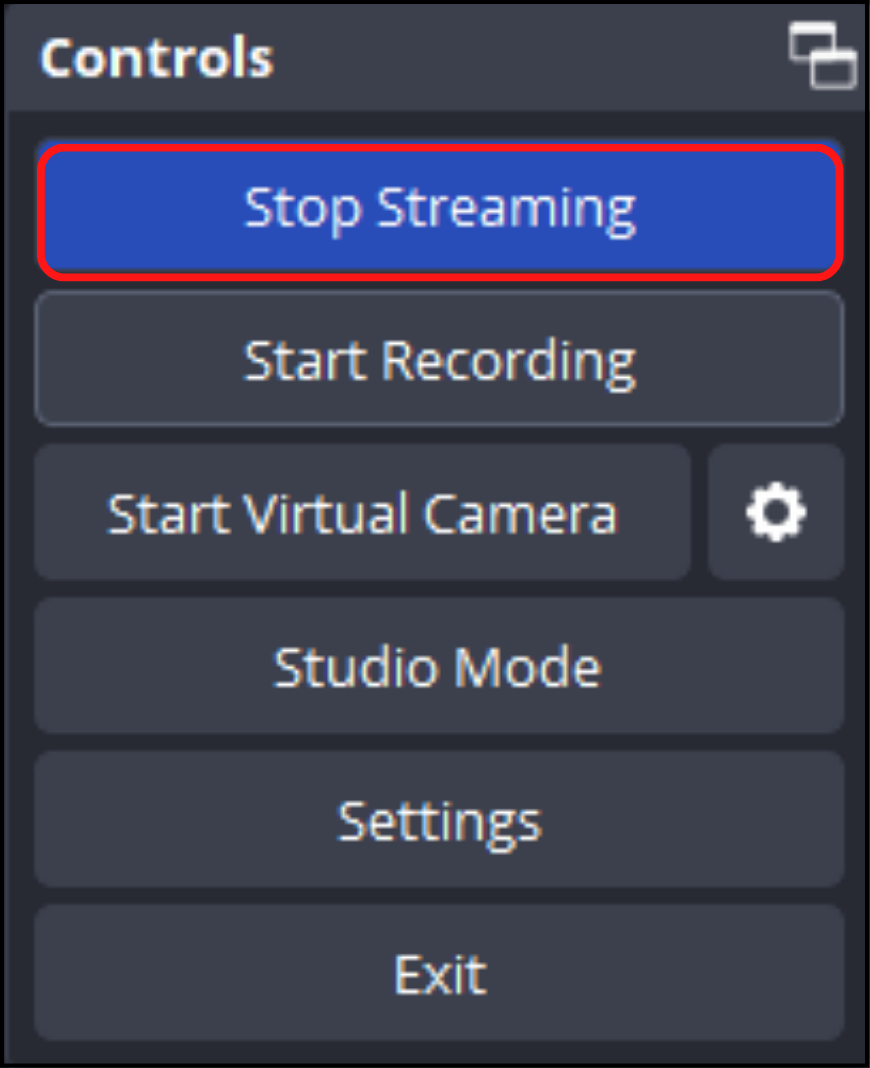

⒈ Select “Stop Streaming” on OBS Studio.
⒉ Hit “Stop Streaming” on 17.live.
▼ How to Install OBS Plug-Ins
<2025/7/2 Update>
■ Downloading and Installing

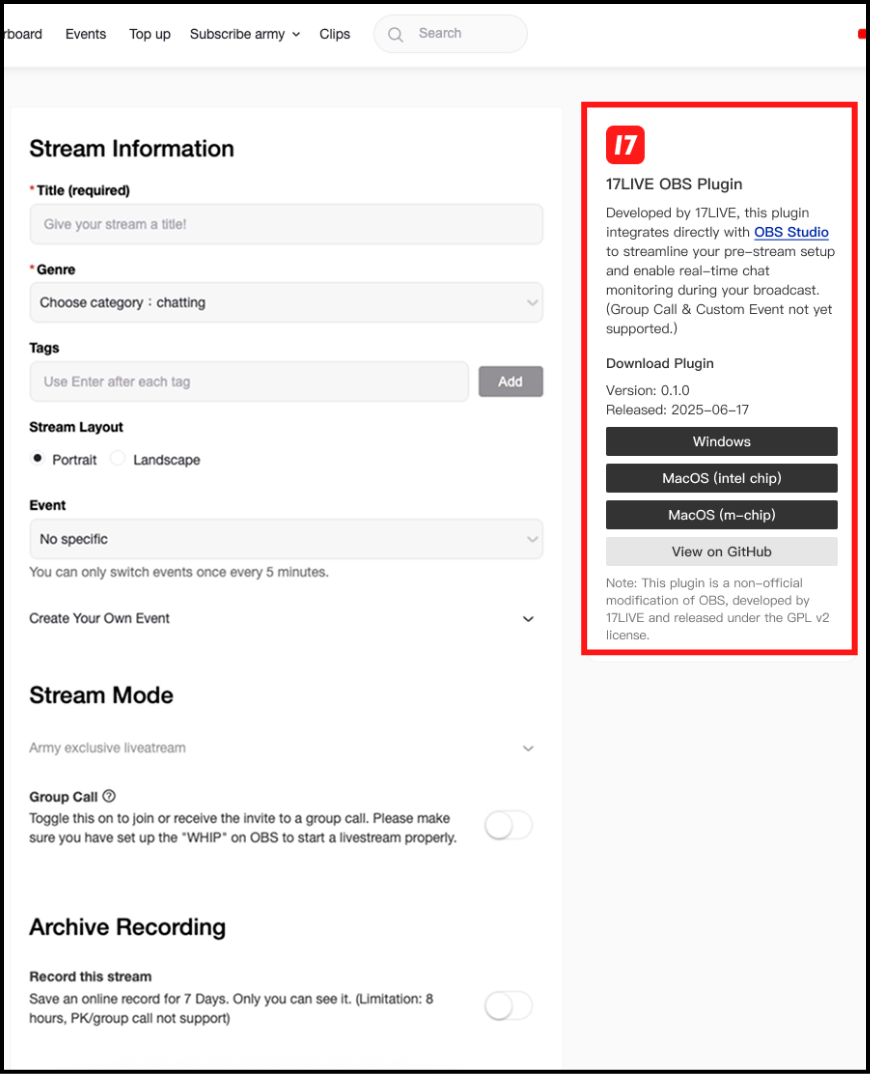

1. Before the livestream starts, the download button will appear at the top right corner of the set up page. Once the livestream begins, the button will be temporarily hidden and will reappear after the livestream ends.
⒉ Download and install the OBS plug-in.
※ Supported in Chinese, Japanese, and English
※ To ensure successful installation, please install the Windows version in the default C drive > obs-studio folder (do not place it in a subfolder under obs-studio). This will prevent abnormal paths from causing OBS to fail to automatically detect the installation directory and affecting the installation process.
※ If your computer is running macOS, please make sure to drag the OBS icon into the “Applications” folder during installation; otherwise, the plugin will not be displayed properly.
⒊ After closing and restarting the OBS software, you can begin using the plug-in features.
■ Login Method

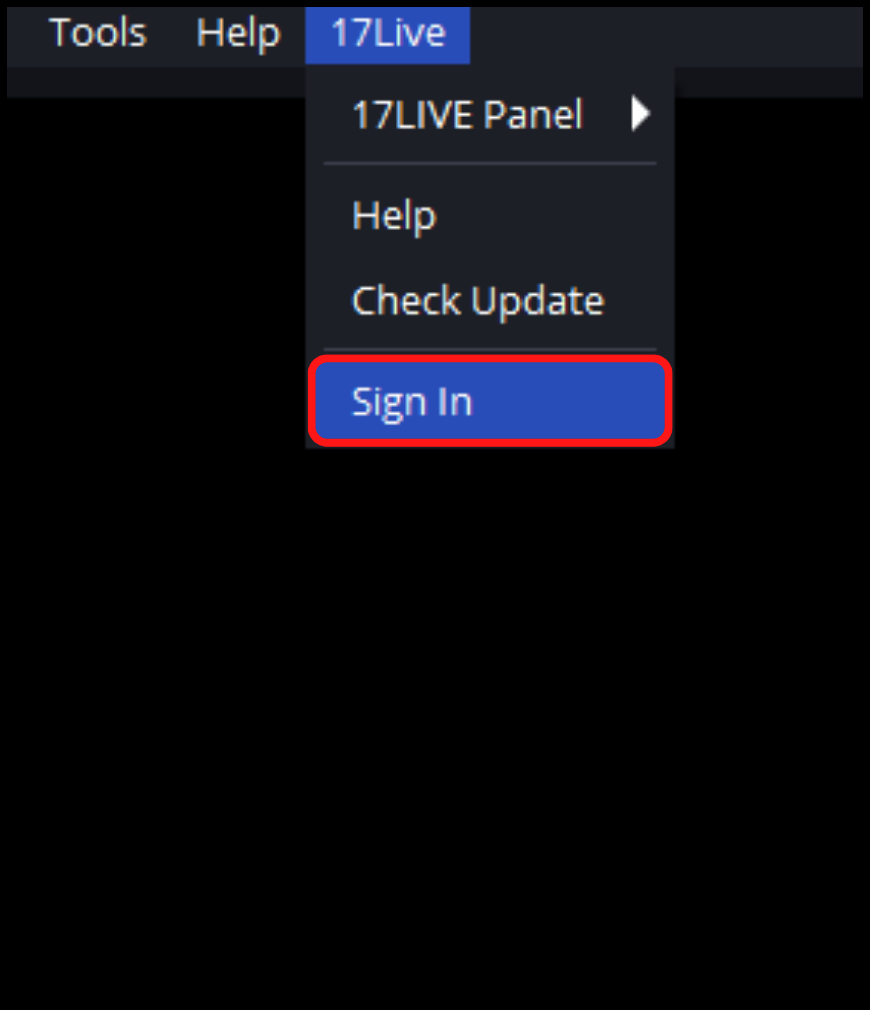

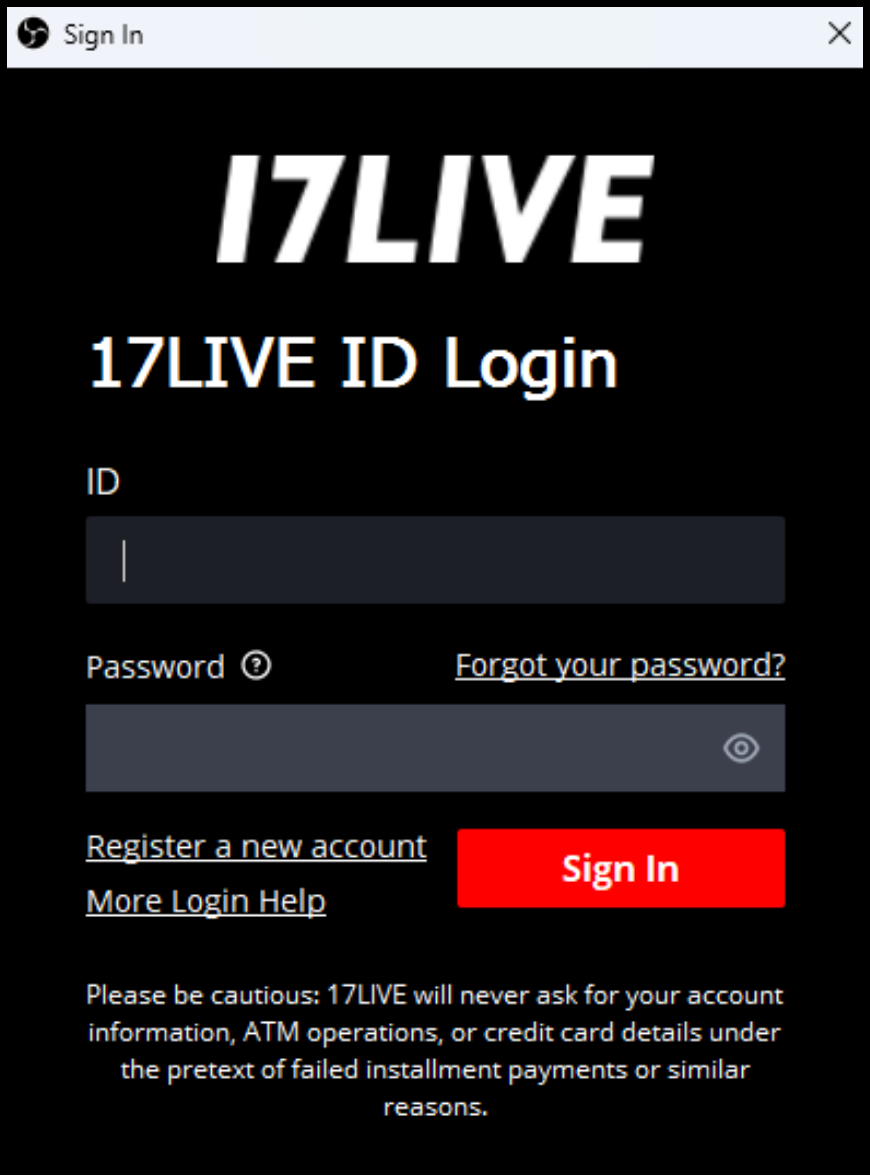

● After installation, click “17LIVE” → “Log In.”
※ The login method only supports 17LIVE account login. If you forget your password, you can reset it through the “Forgot Password” option or contact Customer Support.
■ Livestream Settings

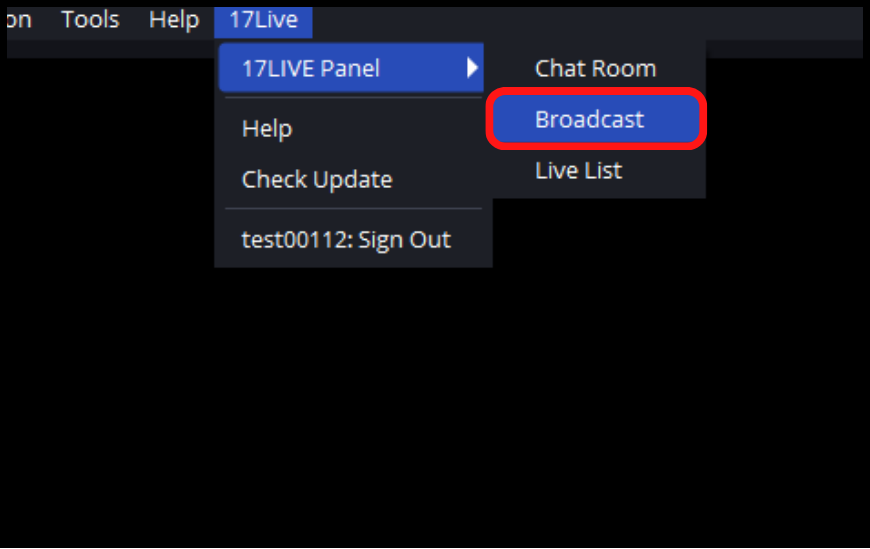

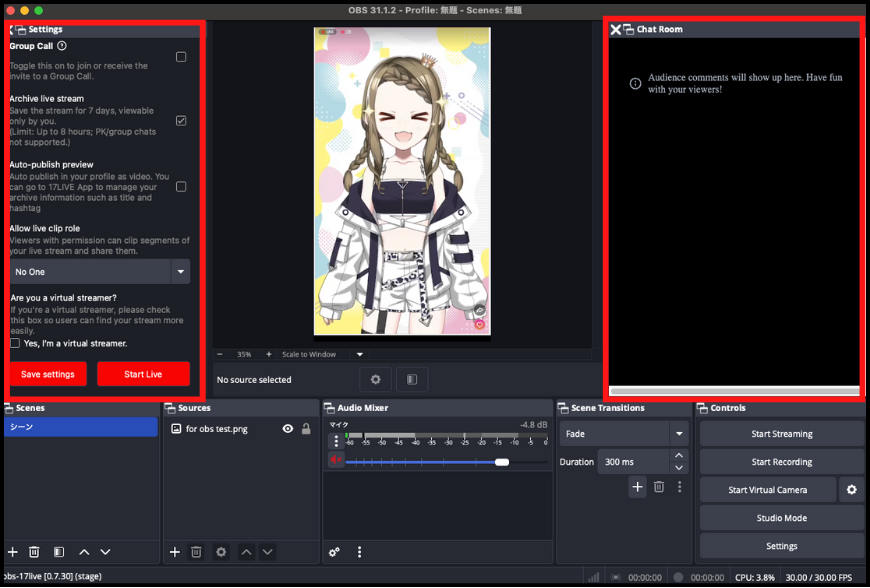

● After logging in, go to the top navigation bar and click “17LIVE” → “17LIVE Panel” → “Broadcast” to enter the livestream settings.
● You can adjust the livestream settings as needed, and then start streaming.

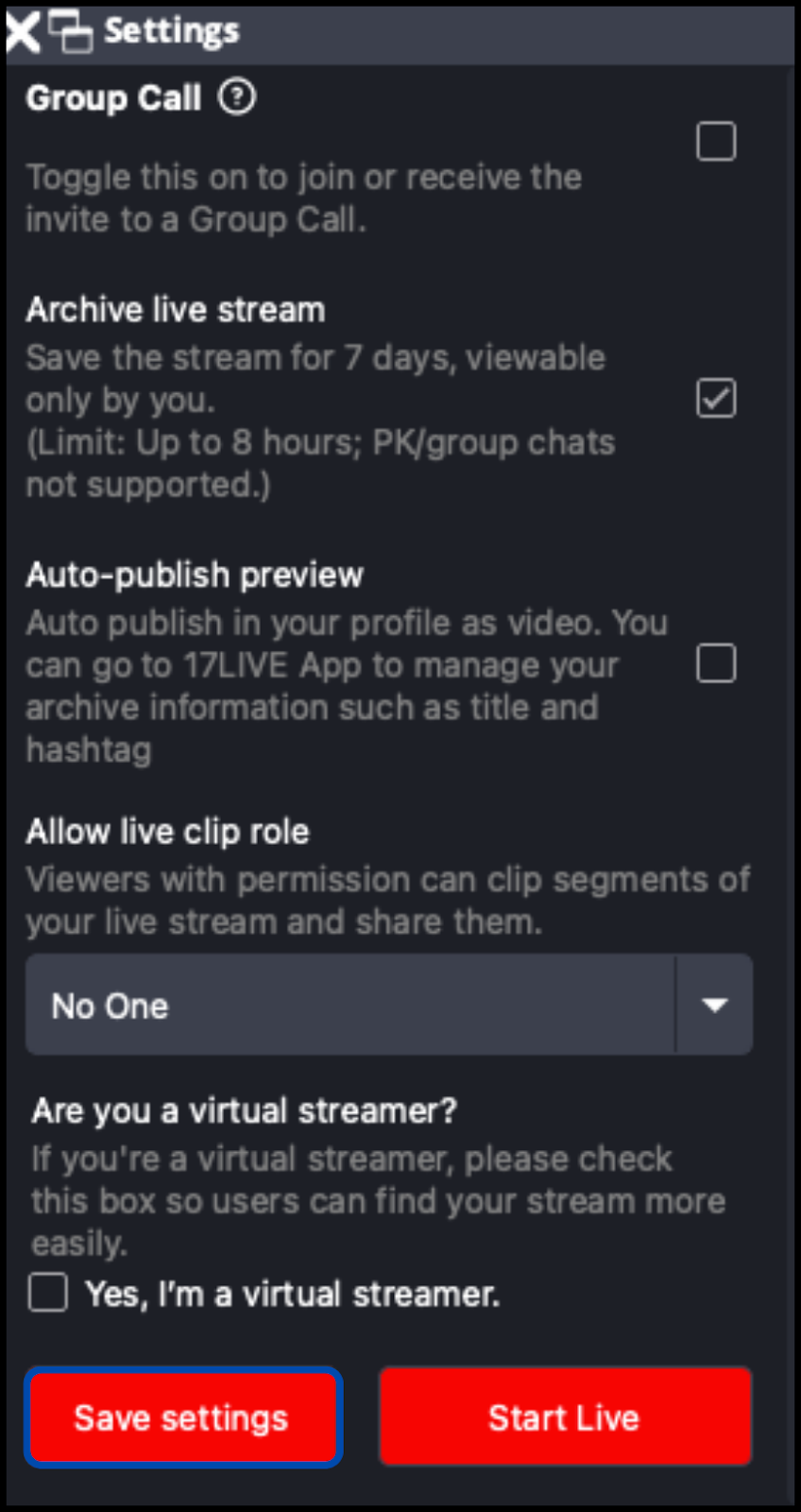

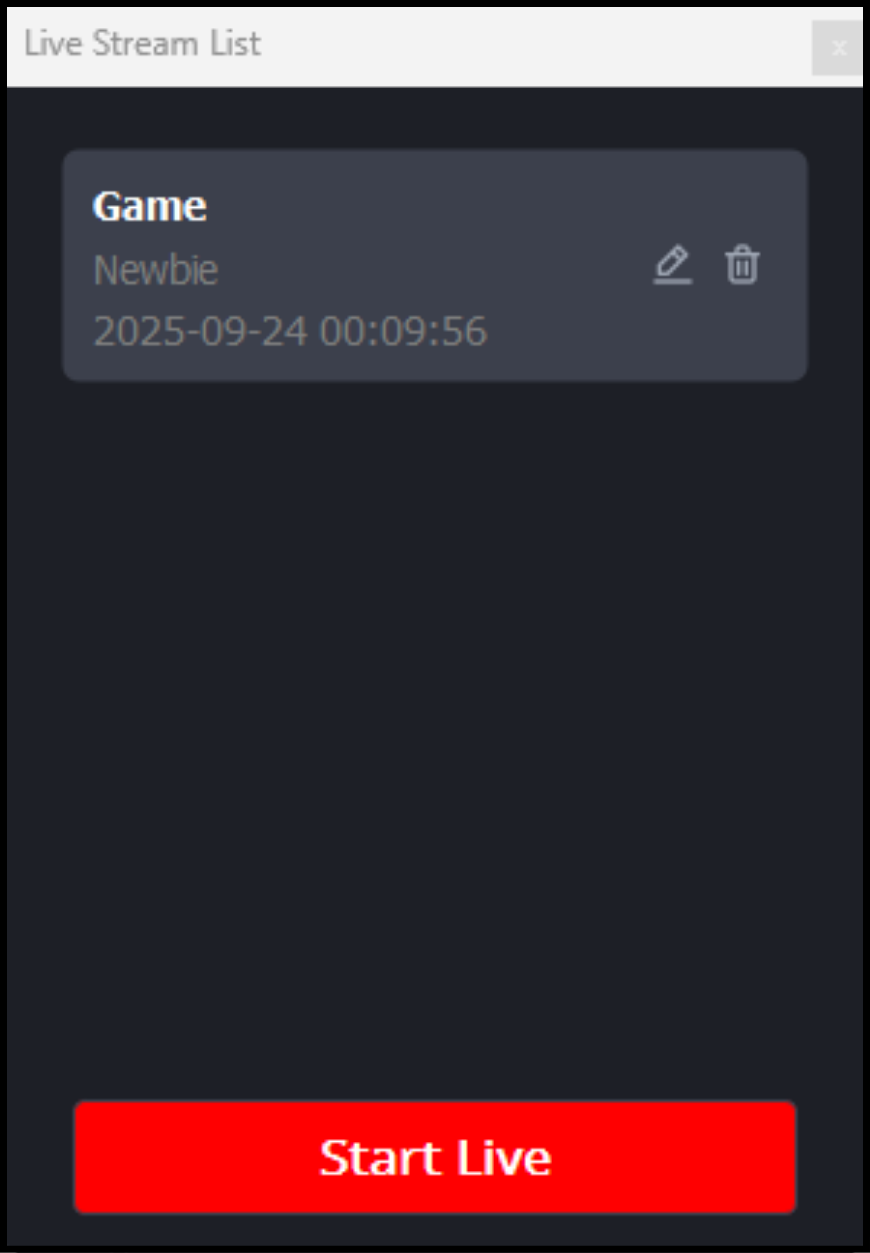

※ Click “Save settings” at the bottom left. Afterwards, you can simply go to “17LIVE” → “Live Stream List” and select the saved settings to start livestreaming.

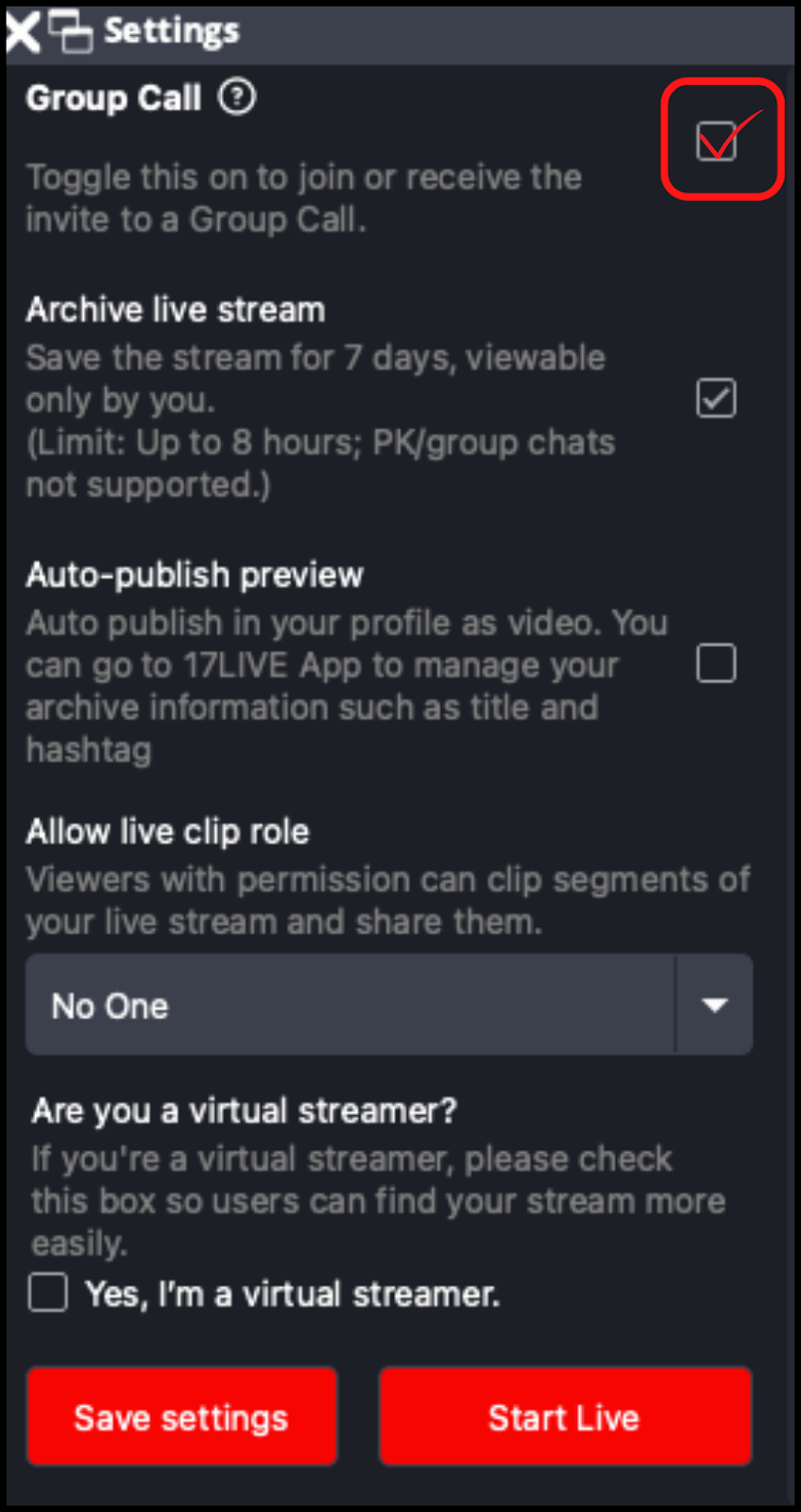

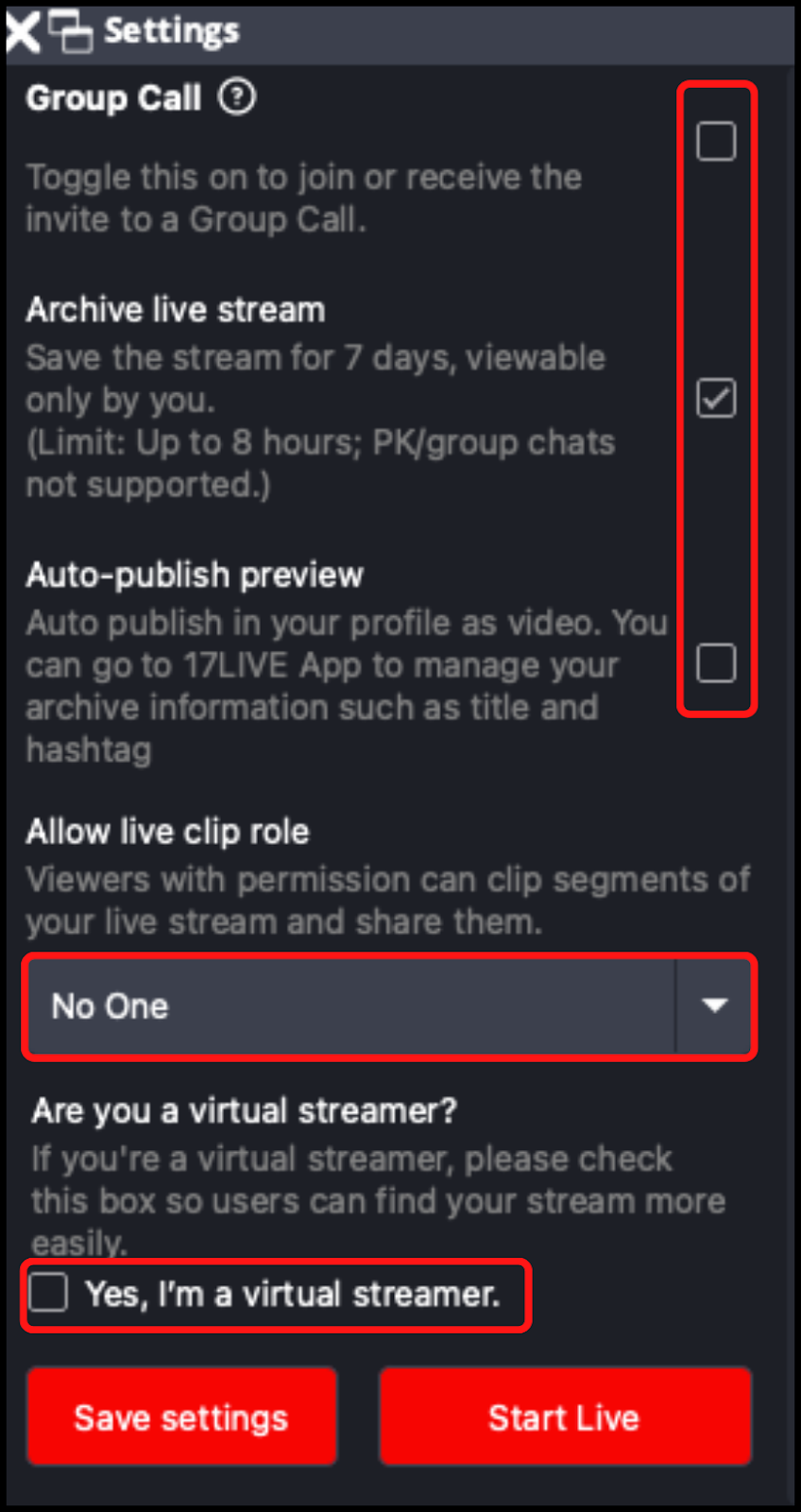

※ The following feature settings can only be modified before going live. Once the livestream starts, they will be locked and cannot be changed during the broadcast:
① Group Calls
② Archive live stream
③ Auto-publish preview
④ Allow live clip role
⑤ Are you a virtual streamer?

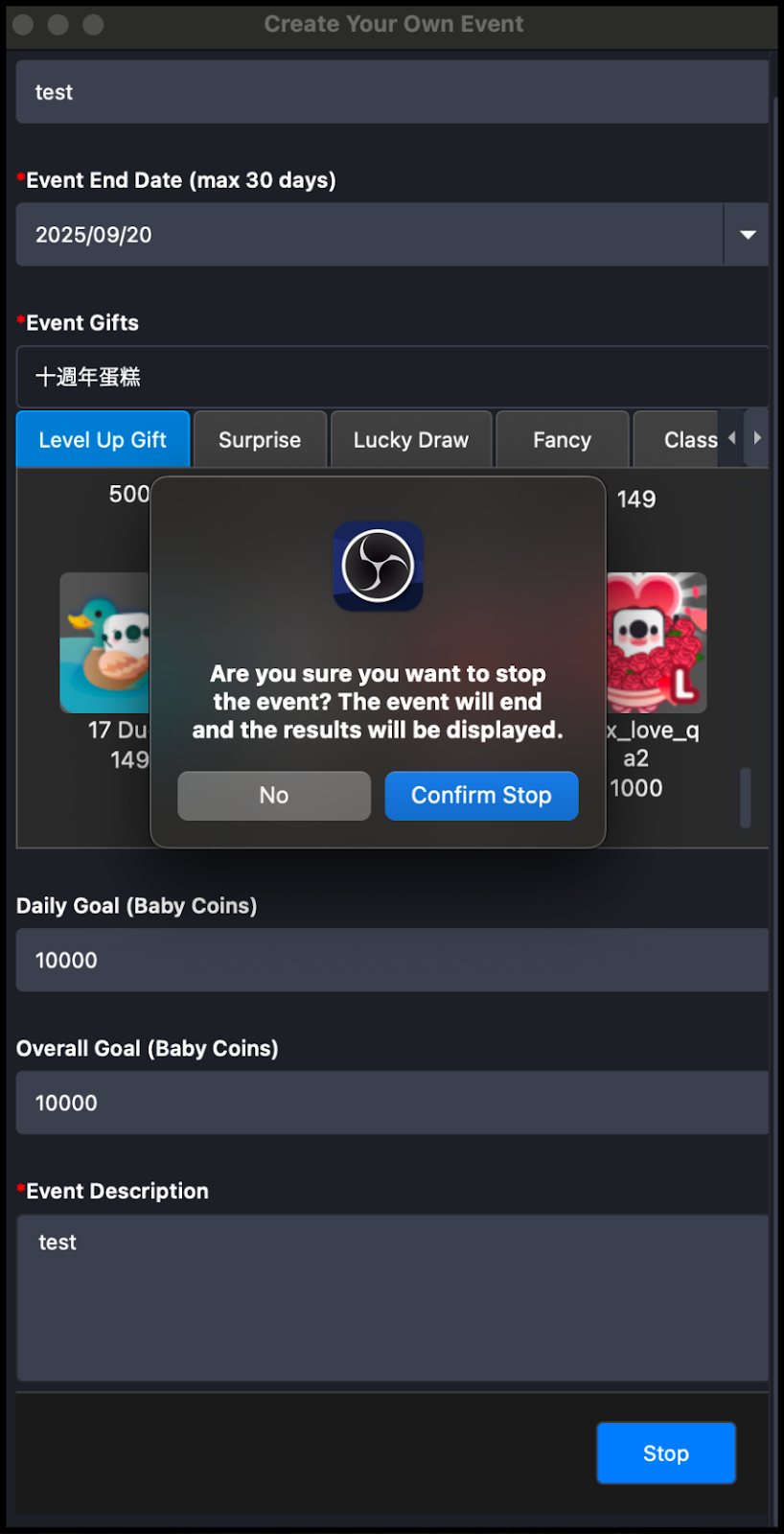

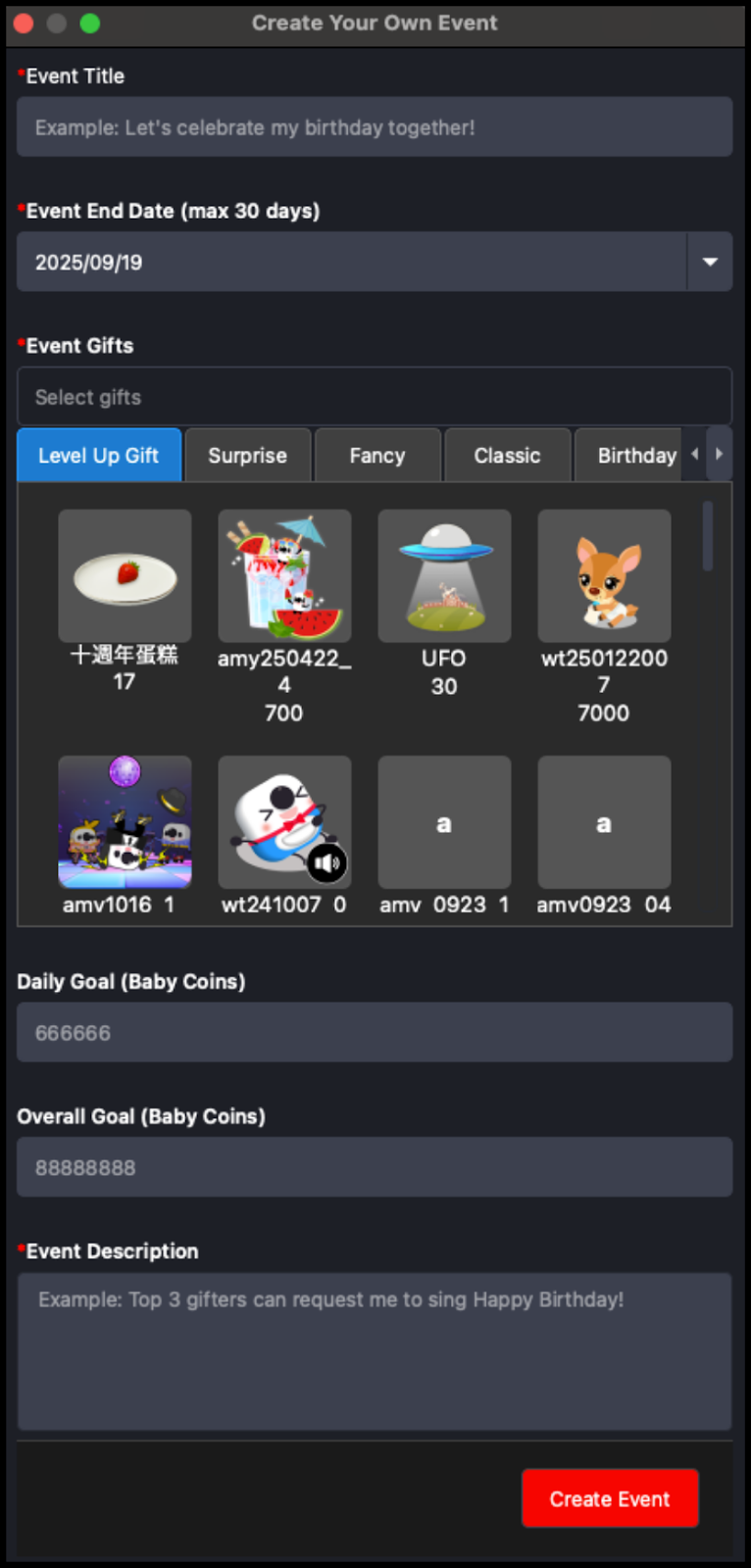

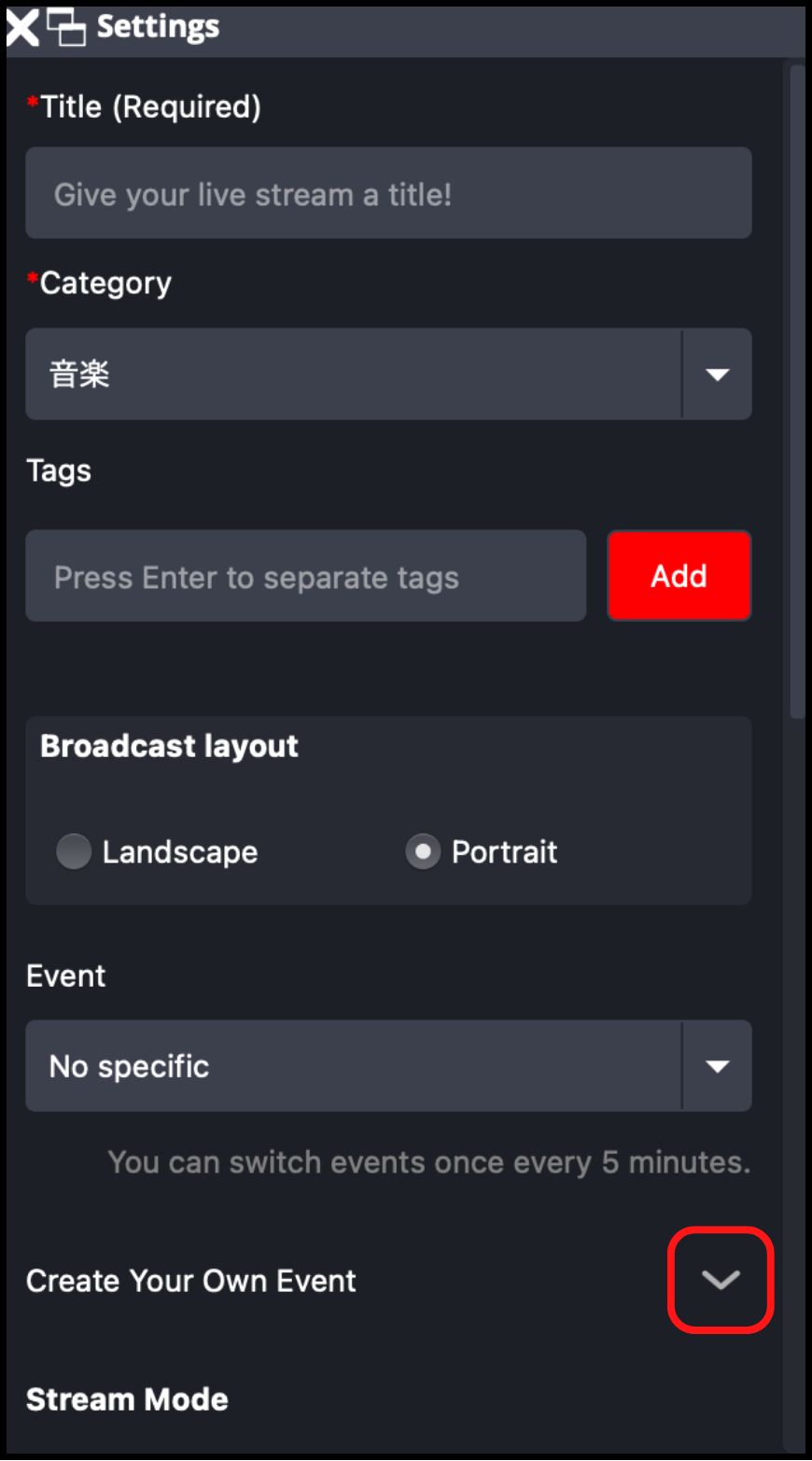

● If you wish to enable a custom event, expand the “﹀” menu to create or end a custom event.

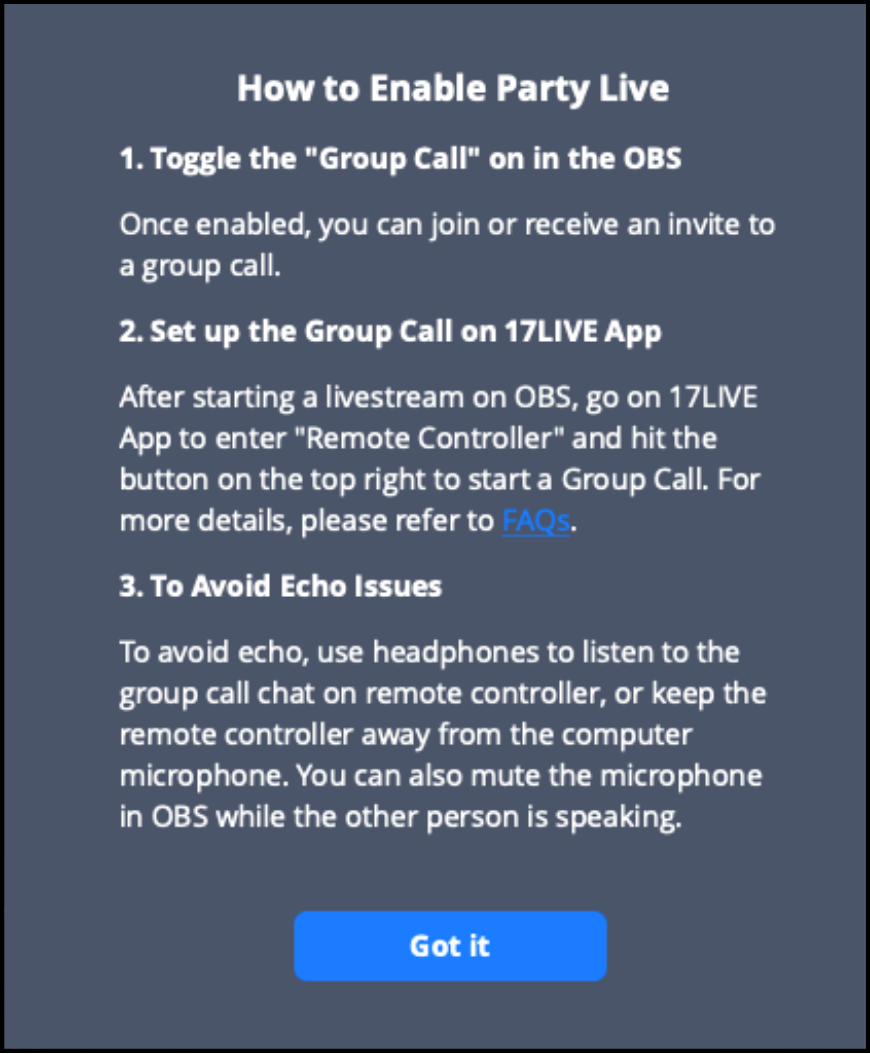

● If you wish to enable the Group Call feature, please activate the relevant settings first, and use the in-app remote control to invite or join a Group Call.
※ When joining a Group Call via the OBS plug-in, the system will automatically switch to WHIP streaming, so no manual configuration is required by the streamer.

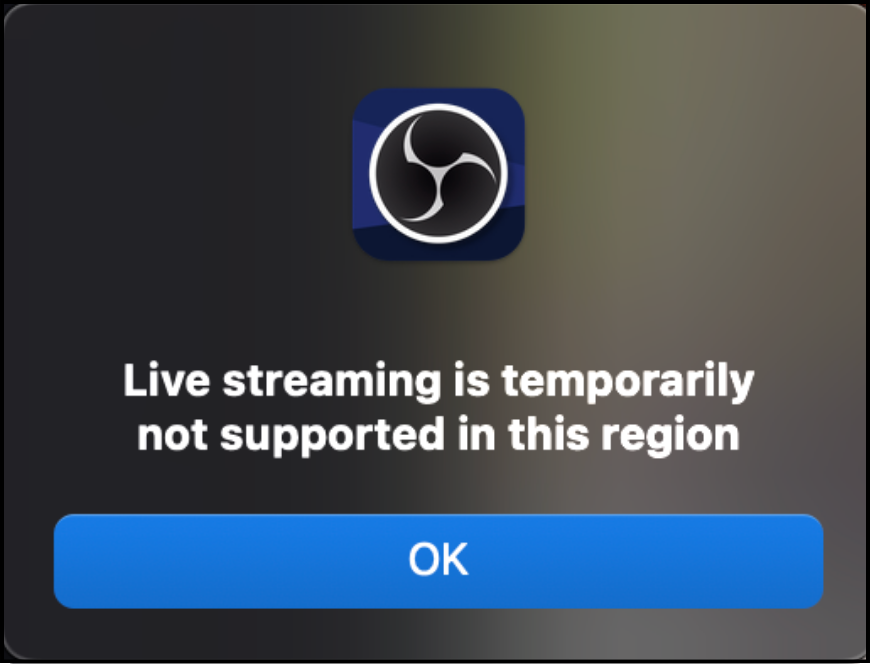

※ If your app region is set to outside of TW/HK/JP, this feature will not be available. After clicking “Start Live,” the message “Live streaming is temporarily not supported in this region” will be displayed.

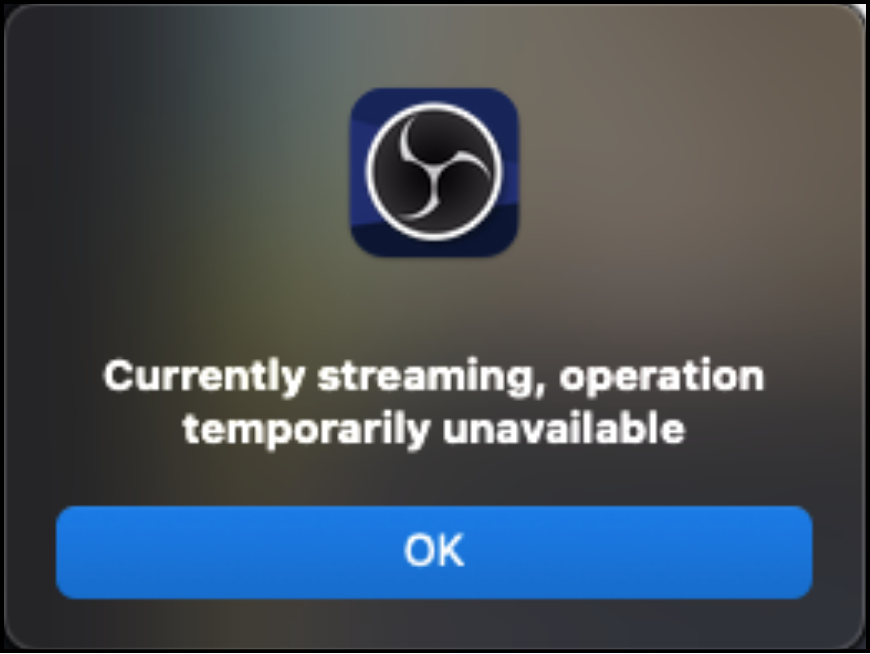

※ If you are already live and click “Start Live” again, the message “Currently streaming, operation temporarily unavailable” will be displayed.
■ Feature Introduction

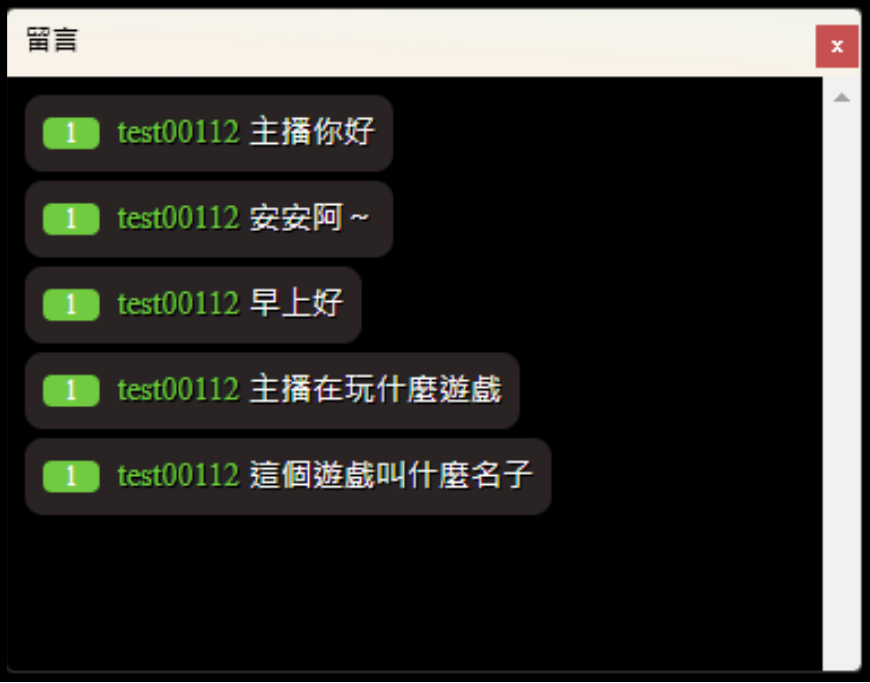

● Click “17LIVE Panel” → “Comments” to open the chatroom and view viewer comments.
※ The chatroom window can be resized and dragged.
※ Currently supports displaying the following four types of messages. The chatroom is view-only and does not allow direct replies to users.

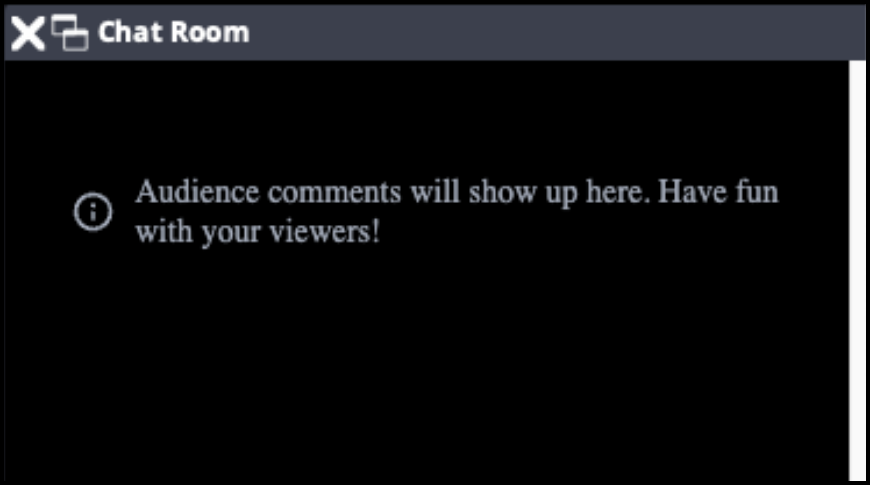

※ When there are no comments, the prompt “Audience comments will show up here. Have fun with your viewers!” will be displayed.
① General comments
② Gift animation messages
③ Random gift messages
④ Viewer entry notifications

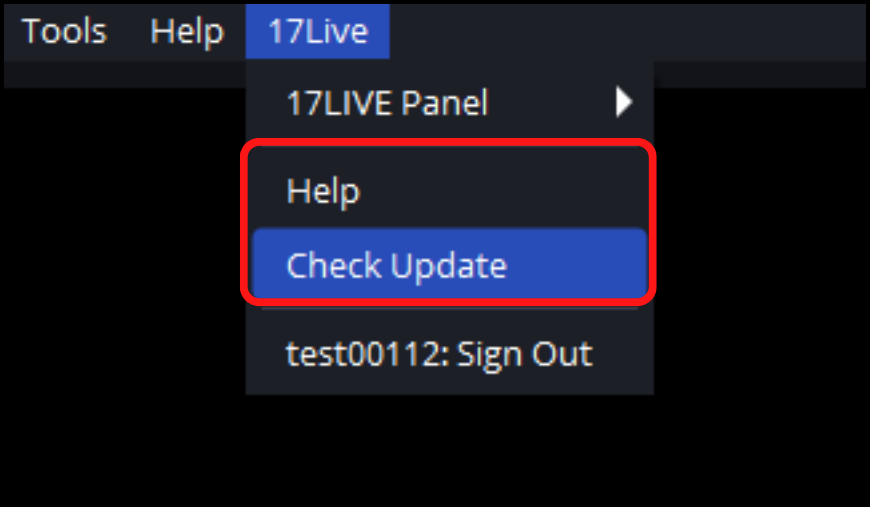

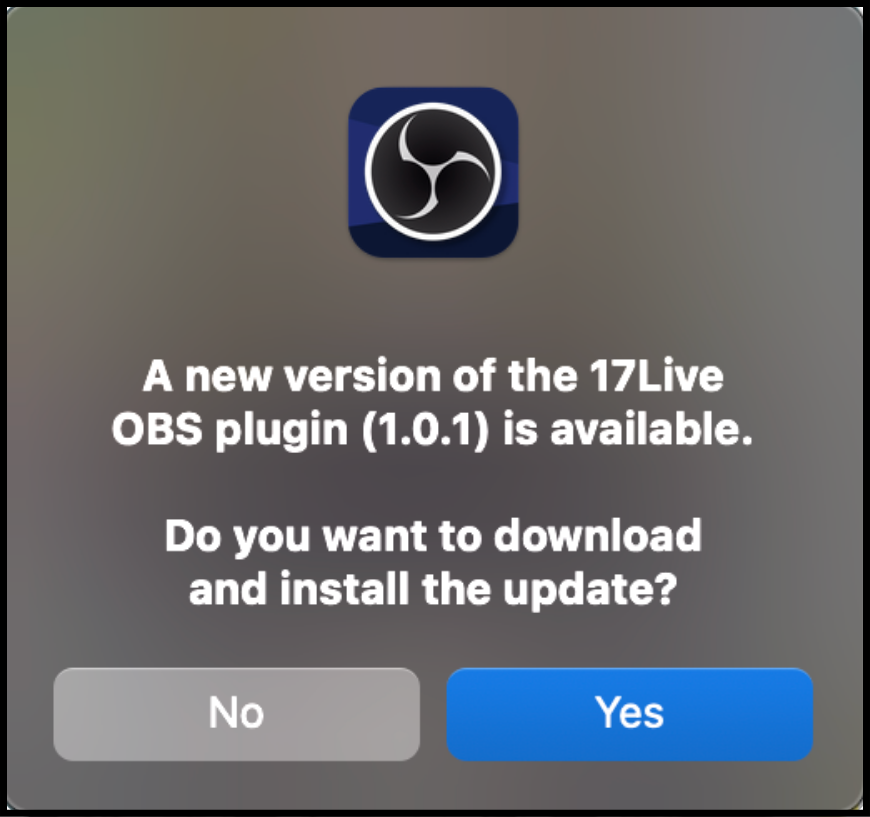

● Help / Check for Updates: Streamers can click “Help” to view the OBS FAQ page, or click “Check for Updates” to visit GitHub and download the latest version of the OBS plug-in.
● OBS will automatically record and apply your previously adjusted window positions to ensure the same operating environment upon your next login.

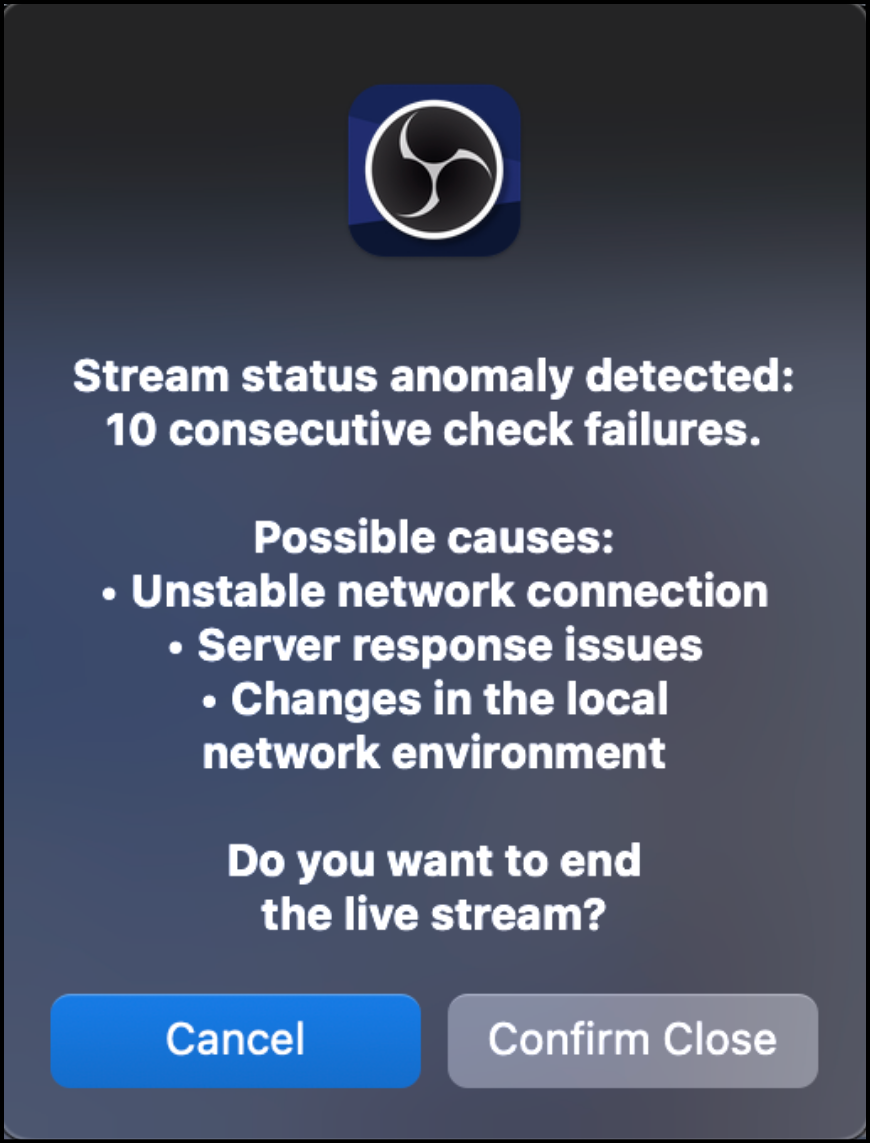

● If the livestream is unexpectedly disconnected, the system will automatically display a reminder and attempt to reconnect. If connection fails 10 consecutive times, the system will ask whether you want to end the livestream.
■ Uninstallation
● After installing the OBS plug-in, if you wish to switch back to streaming without the plug-in, please uninstall the plug-in.
※ For detailed instructions, please refer to the documentation.
Notes
※ The OBS plug-in requires OBS version 30 or above.
※ The OBS plug-in is a non-official modified version of OBS developed by 17LIVE, released under the GPL v2 open-source license.
※ The OBS plug-in supports streamer remote control, allowing streamer to operate additional livestream features via the app.
※ For more information, please see How to Stream on 17LIVE with OBS.
